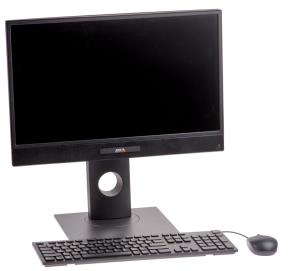

AXIS Camera Station S9201 Mk ll Desktop Terminal

AXIS Camera Station S9201 Mk ll Desktop Terminal is a compact all-in-one desktop terminal designed for optimal viewing of high-definition surveillance video where space is limited. The terminal is preloaded with AXIS Camera Station software to minimize installation time and complements AXIS S11 Recorder Series and AXIS S20 Appliances Series to create a high performing surveillance workstation. AXIS S9201 Mk ll has validated hardware and software components for optimal surveillance experience, and includes three-year hardware warranty with on-site replacement service. AXIS S9201 Mk ll includes a 22 inch monitor for system overview, as well as a universal keyboard and a computer mouse.

Out-of-the-box ready

AXIS S9201 Mk ll is designed for quick installation. The terminal is preloaded with all necessary software including AXIS Camera Station video management software client to enable quick connection to the server. System settings such as camera and storage configurations are preconfigured to further simplify system setup. International keyboard and computer mouse are included.

Maximum reliability

AXIS S9201 Mk ll is optimized to meet the demands for reliable high definition surveillance and have validated hardware and software components for an optimal surveillance experience. To further safeguard system uptime the package include three-year hardware warranty with on-site replacement service and 2-years optional extended warranty.

Display

Display diagonal

55.9 cm (22")

HD type

UltraWide Quad HD

Screen shape

Flat

Processor

Processor manufacturer

Intel

Processor generation

8th gen Intel® Core™ i3

Processor model

i3-8100

Processor family

Intel® Core™ i3

Processor frequency

3.6 GHz

Processor cores

4

Processor threads

4

Processor cache

6 MB

Processor cache type

Smart Cache

System bus rate

8 GT/s

Thermal Design Power (TDP)

65 W

PCI Express slots version

3.0

Processor socket

LGA 1151 (Socket H4)

Processor lithography

14 nm

Processor operating modes

64-bit

Bus type

DMI3

Processor codename

Coffee Lake

Maximum number of PCI Express lanes

16

PCI Express configurations

1x16,1x8+2x4,2x8

Tjunction

100 °C

Maximum internal memory supported by processor

64 GB

Conflict-Free processor

Y

Memory types supported by processor

DDR4-SDRAM

Memory clock speeds supported by processor

2400 MHz

Memory bandwidth supported by processor (max)

37.5 GB/s

Memory channels supported by processor

Dual

ECC supported by processor

N

Memory

Internal memory

8 GB

Storage

Total storage capacity

128 GB

Storage media

SSD

Card reader integrated

Y

Compatible memory cards

SD

Graphics

On-board graphics card

Y

On-board graphics card family

Intel® HD Graphics

On-board graphics card model

Intel® UHD Graphics 630

On-board graphics card base frequency

350 MHz

On-board graphics card dynamic frequency (max)

1100 MHz

Maximum on-board graphics card memory

64 GB

Number of displays supported (on-board graphics)

3

On-board graphics card DirectX version

12.0

On-board graphics card OpenGL version

4.5

On-board graphics card ID

0x3E91

Number of execution units

23

Camera

Built-in camera

N

Network

Ethernet LAN

Y

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

4

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

1

DisplayPorts quantity

1

Headphone outputs

1

Design

Product colour

Black

VESA mounting

Y

Panel mounting interface

100 x 100 mm

Performance

Product type

All-in-One workstation

Software

Operating system installed

Windows 10 Enterprise

Recovery operating system

Windows 10 Enterprise

Processor special features

Intel® Turbo Boost Technology

N

Intel® Hyper Threading Technology (Intel® HT Technology)

N

Intel® Identity Protection Technology (Intel® IPT)

Y

Enhanced Intel SpeedStep Technology

Y

Intel® Quick Sync Video Technology

Y

Intel® Clear Video HD Technology (Intel® CVT HD)

Y

Intel Clear Video Technology

Y

Intel® InTru™ 3D Technology

Y

Intel® AES New Instructions (Intel® AES-NI)

Y

Intel Trusted Execution Technology

N

Intel Enhanced Halt State

Y

Intel VT-x with Extended Page Tables (EPT)

Y

Intel® Secure Key

Y

Intel TSX-NI

N

Intel Stable Image Platform Program (SIPP)

N

Intel® OS Guard

Y

Intel Software Guard Extensions (Intel SGX)

Y

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Y

Intel 64

Y

Execute Disable Bit

Y

Idle States

Y

Thermal Monitoring Technologies

Y

Processor package size

37.5 x 37.5 mm

Supported instruction sets

AVX 2.0,SSE4.1,SSE4.2

Scalability

1S

CPU configuration (max)

1

Embedded options available

Y

Thermal solution specification

PCG 2015C

Intel Virtualization Technology for Directed I/O (VT-d)

Y

Intel Identity Protection Technology version

1.00

Intel Stable Image Platform Program (SIPP) version

0.00

Intel Secure Key Technology version

1.00

Intel Virtualization Technology (VT-x)

Y

Intel TSX-NI version

0.00

Processor ARK ID

126688

Power

AC adapter power

155 W

AC adapter frequency

50/60 Hz

AC adapter input voltage

100-240 V

Weight & dimensions

Width (with stand)

498 mm

Depth (with stand)

225 mm

Height (with stand)

329 mm

Weight (with stand)

7.4 kg

Operational conditions

Operating temperature (T-T)

0 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Operating relative humidity (H-H)

20 - 80%

Certificates

Certification

IEC/EN/UL 60950-1 FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KC KN32 Class B, KN35, EN 55032, EN 55024, EN/IEC 61000-3-2, EN/IEC 61000-3-3, EN 50564, EN 62623, EAC, BSMI, NOM

Packaging content

Mouse included

Y

Keyboard included

Y

Other features

AC adapter output current

3 A
