Introduction

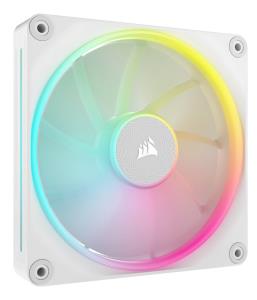

Bring amazing airflow and lighting to your PC with CORSAIR iCUE LINK LX140 RGB Fans, featuring dual light loops and simplified iCUE LINK connectivity.

DOUBLE THE LIGHT SHOW
Dual light loops deliver mesmerizing, synchronized RGB lighting effects.

EXCLUSIVE TIME WARP LIGHTING MODE
Create optical illusions with your lighting thanks to the power of iCUE LINK.

MAGNETIC DOME BEARING
Exceptionally low noise with almost no friction.

PROVEN COOLING PERFORMANCE
It’s not all about looks. LX RGB fans have undergone months of extensive testing to ensure that they deliver powerful and efficient airflow to your system.

Read more about the critical metrics that separate good fans from great fans.

CORSAIR AIRGUIDE TECHNOLOGY
Anti-vortex stator vanes behind the fan blade focus airflow into a tight cone for more effective cooling as a case fan or better heat dissipation as a radiator fan.

QUIKTURN SCREW REVOLUTION
Take CORSAIR's QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.

Performance

Suitable location

Computer case

Type

Fan

Fan diameter

14 cm

Rotational speed (min)

350 RPM

Rotational speed (max)

2000 RPM

Noise level (low speed)

10 dB

Noise level (high speed)

36 dB

Minimum airflow (imperial)

10.74 cfm

Maximum airflow

84.7 cfm

Airflow

143.9 m³/h

Minimum air pressure

0.11 mmH2O

Maximum air pressure

4.86 mmH2O

Pulse-width modulation (PWM) support

Yes

Quantity per pack

1 pc(s)

Design

Product colour

White

Material

Plastic

Number of fan blades

9

Illumination LED

Yes

Illumination colour

Multi

Power

Rated current

0.45 A

Weight & dimensions

Fan dimensions (W x D x H)

140 x 140 x 25 mm

Fan thickness

2.5 cm

Fan weight

324 g
