Introduction

Balances expandability and performance

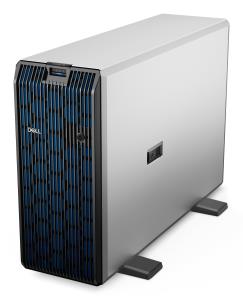

Flexible two-socket tower server for enterprise workloads outside of the traditional data center.

Processor

Processor manufacturer

Intel

Processor family

Intel Xeon Silver

Processor generation

3rd Generation Intel® Xeon® Scalable

Processor model

4309Y

Processor frequency

2.8 GHz

Processor boost frequency

3.6 GHz

Efficient-core base frequency

0.0028 GHz

Performance-core base frequency

2.8 GHz

Processor cores

8

Processor cache

12 MB

Number of processors installed

1

Maximum internal memory supported by processor

32 GB

Memory

Internal memory

16 GB

Internal memory type

DDR4-SDRAM

Buffered memory type

Registered (buffered)

Memory ranking

2

Memory slots

16x DIMM

Memory layout (slots x size)

1 x 16 GB

Memory data transfer rate

3200 MT/s

Maximum internal memory

64 GB

Storage

Total storage capacity

480 GB

Number of SSDs installed

1

SSD capacity

480 GB

SSD interface

SATA III

SSD size

2.5"

Supported SSD sizes

3.5"

Number of SSDs supported

8

RAID support

Yes

Supported RAID controllers

PERC H755

Hot-Plug support

Yes

Optical drive type

No

Internal drive bays

8

Supported storage drive interfaces

SAS, Serial ATA

Drive writes per day (DWPD)

1

Storage drive adapter included

Yes

Storage drive adapter type

2.5" - 3.5"

Graphics

On-board graphics card

No

On-board graphics card model

Not available

Network

Ethernet LAN

Yes

Cabling technology

10/100/1000Base-T(X)

Ethernet interface type

Gigabit Ethernet

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

VGA (D-Sub) ports quantity

1

Serial ports quantity

1

Power cables quantity

1

Design

Chassis type

Tower

Product colour

Black

Bezel

Yes

Performance

Remote administration

iDRAC9, Enterprise 15G

Software

Operating system installed

No

Compatible operating systems

Canonical Ubuntu Server LTS ? Citrix Hypervisor Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi

Power

Redundant power supply (RPS) support

No

Power supply

700 W

Number of main power supplies

1

Power supply input voltage

200 - 240 V

Power cable length

2 m

Power cable connector 1

C13 coupler

Power cable current

10 A

Operational conditions

Operating temperature (T-T)

10 - 35 °C

Storage temperature (T-T)

-40 - 65 °C

Storage relative humidity (H-H)

5 - 95%

Operating altitude

0 - 3048 m

Non-operating altitude

0 - 12000 m

Carbon footprint

Total carbon footprint (kg of CO2e)

9090

Total carbon emissions, standard deviation (kg of CO2e)

4620

Carbon emissions, manufacturing (kg of CO2e)

1095.1

Carbon emissions, logistics (kg of CO2e)

565

Carbon emissions, energy usage (kg of CO2e)

7390

Carbon emissions, end-of-life (kg of CO2e)

46.6

Total carbon emissions, w/o use phase (kg of CO2e)

1700

PAIA version

1.3.2, 2022

Weight & dimensions

Width

200 mm

Depth

680.5 mm

Height

459 mm

Other features

Data transfer rate

6 Gbit/s

Bytes per sector

512
