Introduction

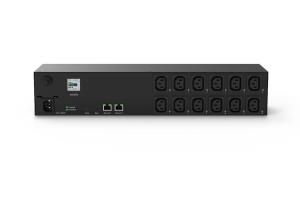

The EnGenius Cloud Managed 2U 10A Smart PDU with 12 IEC-C13, PDU 12P 10A 200-240V (ECP212-INT) serves as a cloud-based power management solution for diverse applications. It facilitates remote and local control, efficient energy management, and advanced surge protection. Additionally, it offers unified management for all EnGenius devices, simplifying maintenance and troubleshooting by enabling power cycling of multiple devices. Function

Design

PDU types

Managed

Rack capacity

2U

Housing material

SECC

Product colour

Black

Display

LCD

On/off switch

Yes

Illuminated on/off switch

Yes

Ports & interfaces

AC outlets quantity

12 AC outlet(s)

AC outlet types

C13 coupler

Ethernet LAN (RJ-45) ports

2

Input connection type

H05VV-F 3G

Features

Reset button

Yes

LED indicators

Yes

Cable length

1.83 m

Cable type

CEE 7-VII

Management features

Monitoring

Power

Power

Nominal input voltage

200 - 240 V

AC input frequency

50/60 Hz

Maximum current

10 A

Block 1 output current

12 A

Output voltage

200 - 240 V

Power protection features

Surge protection

Maximum power

2400 W

Surge protection

Yes

Circuit breaker

Yes

Certificates

Compliance certificates

CE, RCM, RoHS, WEEE

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-30 - 70 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

440 mm

Depth

10.9 mm

Height

88 mm

Weight

2.46 kg

Packaging content

Packaging content

1 – ECP212-INT PDU 1 – Inlet Power Cord 2 – C14 to C13 Plug Adapter 1 – Mounting Brackets 4 – Rubber Feet Cushion 8 – M4x6 Screws 4 – T4x19 Screws 4 – Spacer 1 –Drywall Anchor Kit 1 –Retention Clip
