Introduction

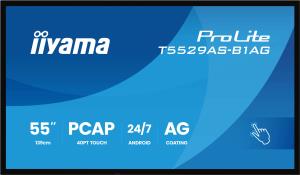

55" All-in-One PCAP Interactive Display for Smart Collaboration Spaces

The ProLite T5529AS-B1AG is a 55" all-in-one PCAP touchscreen display built for the evolving needs of modern workspaces, especially huddle spaces where creativity, flexibility, and seamless sharing take center stage.

Powered by Android OS, this interactive display delivers a user-friendly and highly adaptable experience. You can install your preferred apps directly on the device, enabling customized workflows tailored to your environment — whether in a collaborative meeting area, an enterprise innovation hub, or an educational breakout room.

The USB-C loop-through feature simplifies connectivity by allowing multiple displays to be easily daisy-chained while transmitting power, data, and video — all through a single cable. This reduces cable clutter and setup time, making it ideal for dynamic workspaces. The included wall mounting bracket makes installation straightforward and secure.

With iiSignage² (CMS), iiControl (DMS), and iiShare (Wireless Presentation) you gain full control over content and messaging, even remotely — perfect for updating shared information or branded visuals on the fly. The integrated EShare app brings wireless screen sharing and collaboration to life, supporting multi-user interaction and real-time ideation.

The T5529AS-B1AG isn’t just a display — it’s a collaboration tool designed to empower teams, streamline communication, and make every meeting count.

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Touch Through-Glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

Huddle Spaces
Turn these small meeting rooms into neat Collaboration spaces by employing the embedded applications like Android OS, EShare and Whiteboard, a selection of intuitive and practical tools installed on our PCAP interactive Touchscreens. With Android OS you can easily customize the display by installing applications directly to it. With the EShare app you can share, stream and edit content from any device directly on screen and transform your team meetings into an easy, fast and seamless interactive session.

USB-C Loop Through
One cable, zero clutter. USB-C Loop Through lets you connect and daisy-chain devices with ease—video, data, and power all in one go. It’s plug, play, and pass it on. Smart connectivity that keeps your setup clean and simple.

Touch Pens
Two stylish dual tip Touch pens are included and they can be placed at both sides of the display at the magnetic holding spots.

Retail Instalations
The interactive 4K Touchscreens are the key for immersive interactive experiences for spatial retail design. Allow customers to explore your website right there and then or engage with a range of creative or experiential applications you want to host. The flexibility of either landscape or portrait modes with 24/7 Operation, built-in Android and MediaPlayer make this SERIES displays one of the most adaptable Touchscreens solutions around.

Display

Panel type

VA

LED backlight

Yes

LED backlighting type

Direct-LED

Display diagonal

138.7 cm (54.6")

Display technology

LED

Display resolution

3840 x 2160 pixels

Display brightness

500 cd/m²

HD type

4K Ultra HD

Touchscreen

Yes

Number of simultaneous touchpoints

20

Multi-touch

Yes

Native aspect ratio

16:9

Response time

6.5 ms

Contrast ratio (typical)

4000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.07 billion colours

Pixel pitch

0.315 x 0.315 mm

Active display area (W x H)

1209.6 x 680.4 mm

Display diagonal (metric)

139 cm

Horizontal scan range

28 - 160 kHz

Surface hardness

8

Glass thickness

3.7 mm

Ports & interfaces

HDMI ports quantity

2

HDMI version

1.4/2.0

DVI port

No

USB port

Yes

USB ports quantity

2

USB version

2.0

USB Type-C DisplayPort Alternate Mode

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

1

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 5 (802.11ac)

RS-232C

Yes

Remote (IR) input

1

Remote (IR) output

1

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

RMS rated power

20 W

Design

Product design

Interactive flat panel

Placement supported

Indoor

Orientation

Horizontal/Vertical

Product colour

Black

Screen shape

Flat

VESA mounting

Yes

Panel mounting interface

300 x 400 mm

Anti-glare screen

Yes

Performance

Purpose

Universal

On Screen Display (OSD)

Yes

Number of OSD languages

8

On Screen Display (OSD) languages

Multi

Operating hours (hours/days)

24/7

HDCP

Yes

HDCP version

1.4/2.2

Mean time between failures (MTBF)

50000 h

Power

Power consumption (typical)

104 W

Power consumption (standby)

0.5 W

Power consumption (off)

0.3 W

Energy efficiency class (SDR)

G

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

Energy efficiency scale

A to G

Computer system

Built-in processor

Yes

Processor manufacturer

ARM

Processor architecture

ARM Cortex-A73

Processor cores

4

Internal memory

4 GB

On-board graphics card model

ARM Mali-G51

Internal storage capacity

32 GB

Operating system installed

Android

Operating system version

14

Weight & dimensions

Display width

1258.2 mm

Display depth

42.3 mm

Display height

728.8 mm

Display weight

26.8 kg

Packaging data

Package width

1400 mm

Package depth

164 mm

Package height

850 mm

Package weight

32.7 kg

Packaging content

Remote control included

Yes

Batteries included

Yes

Stylus pen

Yes

Number of stylus pens

2

Cables included

AC, HDMI

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

-20 - 60%

Certificates

Certification

CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
