Introduction

Meticously Powerful Signage with Professional Protection

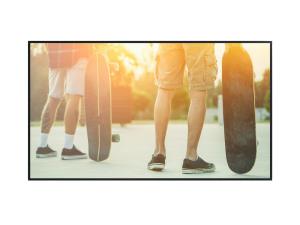

The NEC MultiSync® M651 PG-2 combines professional protection of your investment with unparalleled display performance. Deliver your message with impact and seamless simplicity for the most convincing results.

Guaranteed reliability even under the toughest conditions is achieved with the super robust 5mm thick protective glass designed to withstanding external impacts. The anti-reflective glass surface combined with brightness levels of 500 cd/m² provides crisp and clear images and readability from different viewing angles and distances.

The MultiSync® M651 PG-2 is the perfect choice for creating a big and durable impression in public spaces with high volumes of people such as for applications in transportation, retail, hospitality and digital out of home as well as for tough environments in industrial applications.

Display

Panel type

IPS

LED backlight

Yes

Display diagonal

109.2 cm (43")

Display technology

LED

Display resolution

3840 x 2160 pixels

Display brightness

500 cd/m²

Touchscreen

No

Native aspect ratio

16:9

Response time

8 ms

Contrast ratio (typical)

8000:1

Viewing angle, horizontal

178°

Viewing angle, vertical

178°

Display number of colours

1.073 billion colours

Display diagonal (metric)

108 cm

Horizontal scan range

26 - 91.1 kHz

Vertical scan range

23 - 86 Hz

Native refresh rate

60 Hz

Haze rate

28%

Ports & interfaces

HDMI ports quantity

4

HDMI input ports quantity

4

DVI port

No

DisplayPorts quantity

2

DisplayPorts in

1

DisplayPorts out

1

USB port

Yes

USB ports quantity

1

USB version

2.0

Ethernet LAN

Yes

Ethernet LAN data rates

100 Mbit/s

Wi-Fi

No

RS-232 interface

Yes

DC-in jack

Yes

Audio

Built-in speaker(s)

Yes

Number of built-in speakers

2

RMS rated power

10 W

Design

Product design

Kiosk design

Placement supported

Indoor

Orientation

Horizontal/Vertical

Product colour

Black

VESA mounting

Yes

Panel mounting interface

300 x 300 mm

Bezel width (bottom)

1.96 cm

Bezel width (side)

2.06 cm

Bezel width (top)

1.5 cm

Performance

Purpose

Retail

Ambient light sensor

Yes

Operating hours (hours/days)

24/7

HDCP

Yes

International Protection (IP) code

IP5X, IP2X

Power

Power consumption (typical)

80 W

Power consumption (standby)

0.5 W

Energy efficiency class (SDR)

G

Energy consumption (SDR) per 1000 hours

68 kWh

AC input voltage

100-240 V

AC input frequency

50/60 Hz

Computer system

Computer system

Yes

Built-in processor

Yes

Processor manufacturer

Intel

Video formats supported

MP4, MPG, TS

Audio formats supported

AAC, LPCM, MP3, WMV

Image formats supported

JPG

Weight & dimensions

Display width

987.4 mm

Display depth

75.9 mm

Display height

569 mm

Display weight

25.6 kg

Packaging data

Package width

1120 mm

Package depth

203 mm

Package height

700 mm

Package weight

31.1 kg

Packaging content

Remote control included

Yes

Batteries included

Yes

Cables included

HDMI, Power

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

10 - 90%

Certificates

Certification

BSMI; CE; EAC; EMC Class B; Energy Star 8; FCC Class B; KC/KCC; PSB; RCM; RoHS; VCCI

Features

Base material

Metal
